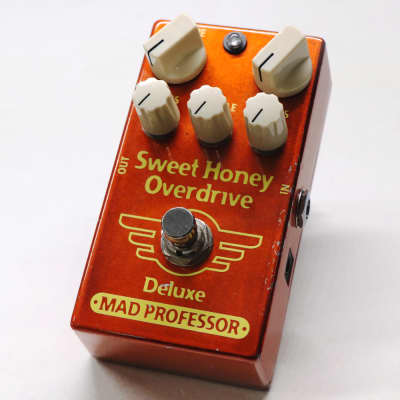

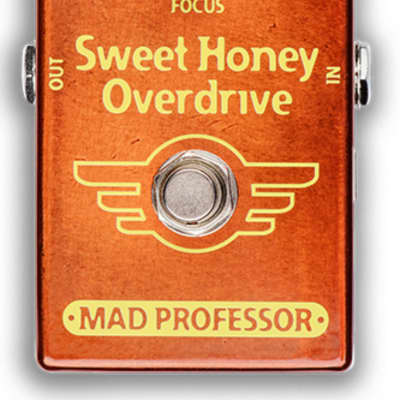

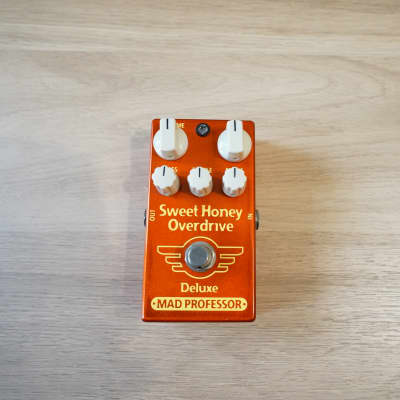

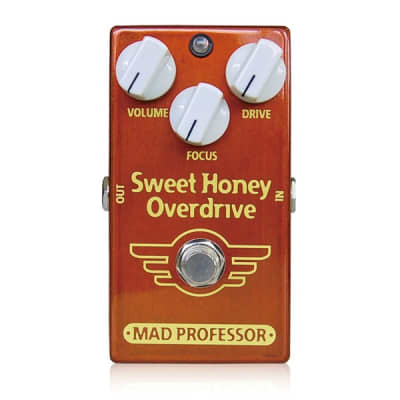

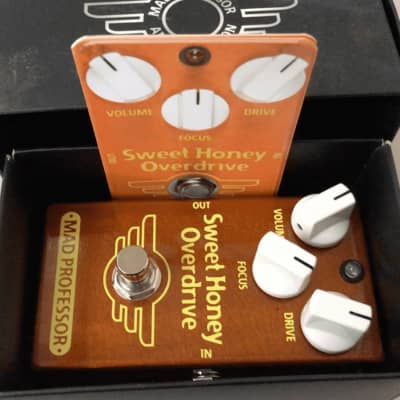

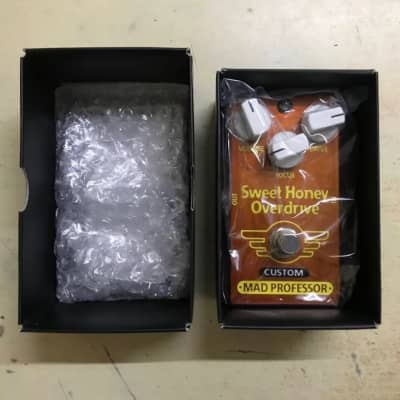

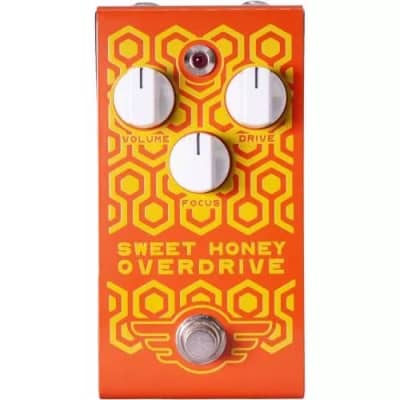

Sweet Honey Overdrive

The Sweet Honey Overdrive by Mad Professor is a touch-sensitive low gain overdrive pedal designed to overdrive distorted amplifiers and provide dynamically controlled light overdrive on clean sounds. The pedal features the following technical specifications:

- Supply voltage range: 7.5 to 18VDC
- Current consumption: 5 mA at 9VDC
- Input impedance: 260K Ohms
- Output impedance: 25K Ohms
- Complete bypass (true bypass)

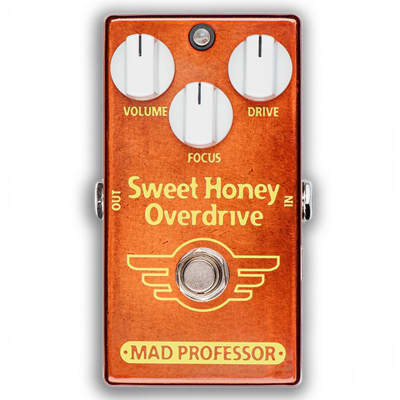

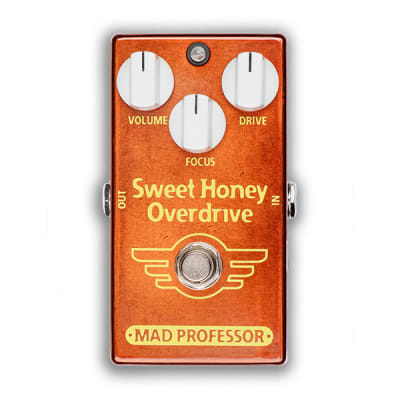

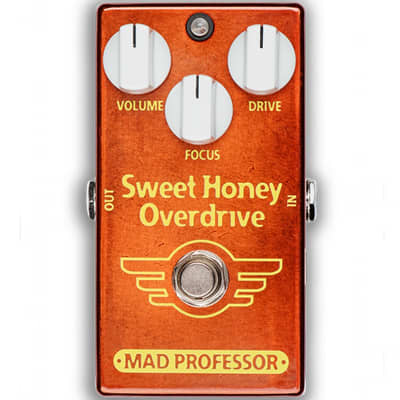

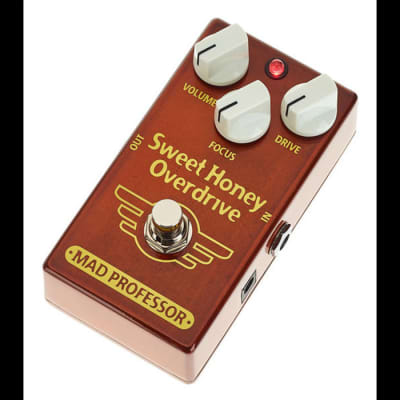

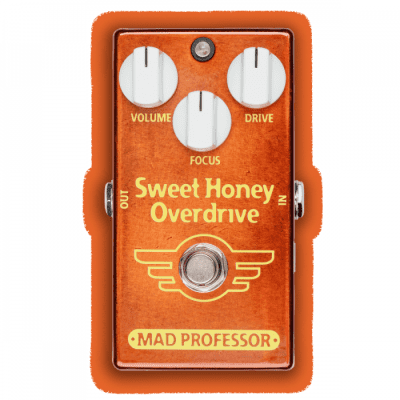

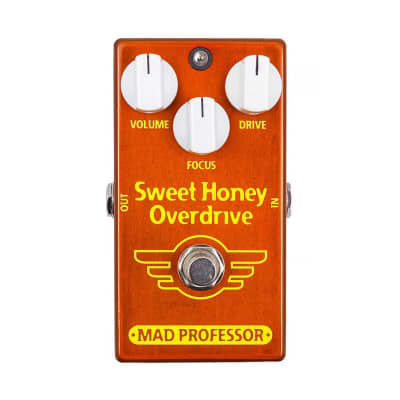

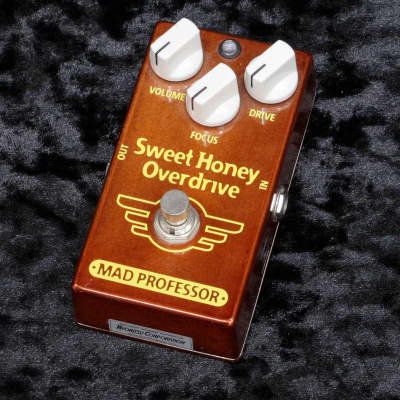

The pedal includes the following controls:
- VOLUME: Sets the output volume
- DRIVE: Controls the amount of overdrive
- FOCUS: Controls how easily the circuit distorts as well as adjusting overall EQ. Turning CCW gives less distortion and a mellow effect, turning CW gives a slight treble boost and earlier distortion. A good starting point is 11 o’clock.

The Sweet Honey Overdrive is suitable for classic blues and rock sounds, and it can also go heavier when combined with an overdriven amp channel. It is designed to work with all kinds of guitars and amplifiers, offering a tight sound and versatility.

The power requirements for the pedal are a 6F22 9V battery or a DC eliminator with a 2.1 mm plug (center negative and positive sleeve). It is important to maintain the recommended voltage for best results, as a fuzzy sound is a sign of low voltage.
