Nux solid studio

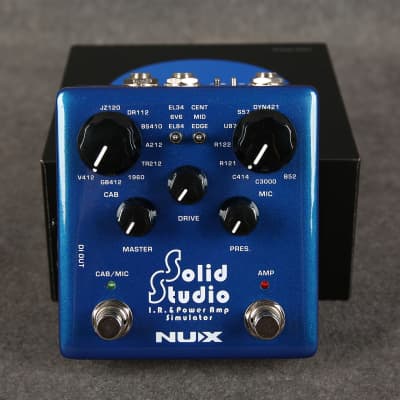

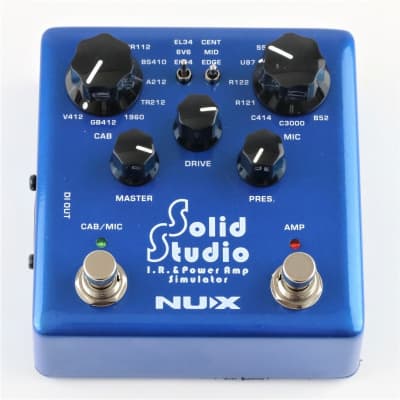

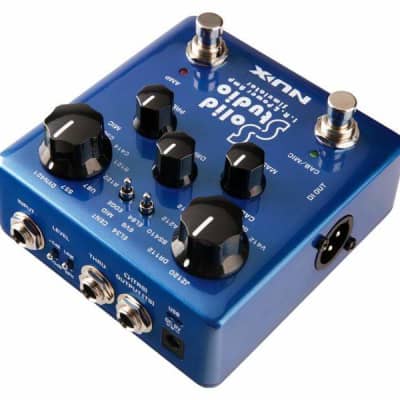

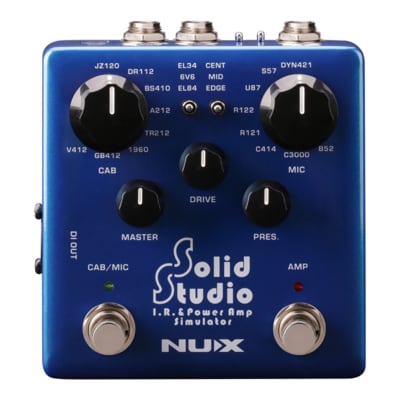

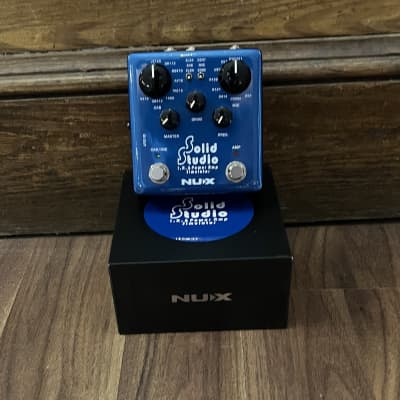

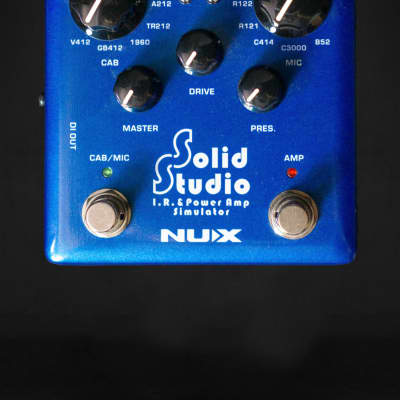

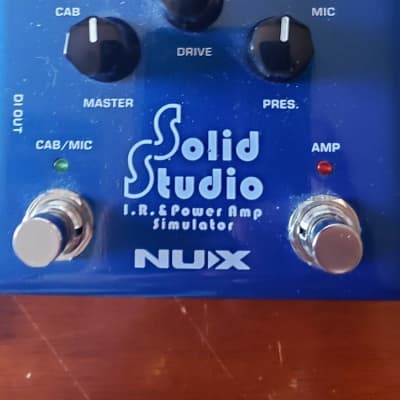

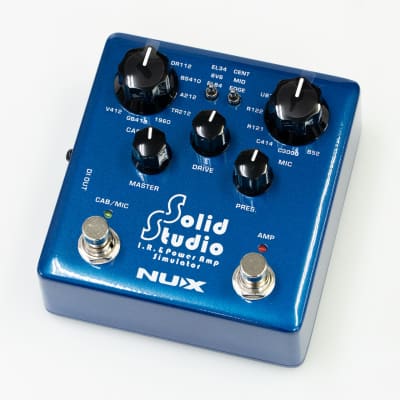

The NUX Solid Studio IR Loader and Power Amp Simulator pedal is a versatile device designed for guitarists and musicians seeking high-quality sound reproduction and flexibility in their setups. Here are the technical specifications and features:

- Sampling Frequency: 88.2kHz
- A/D Resolution: 32 bit
- Frequency Response: 20Hz-20kHz +/- 0.5dB
- Dynamic Range: 100dB
- Latency: 0.7ms
- IR Resolution: 2048 samples (46ms)
- Input: 6.35mm mono input with input signal level toggle switch (-10dB / +4dB)
- Outputs: 3 outputs including unbalanced output of processed signal and balanced output of processed signal
- Power Supply: Requires a 9-volt power supply delivering 240mA
- Weight: Just under 500 grams

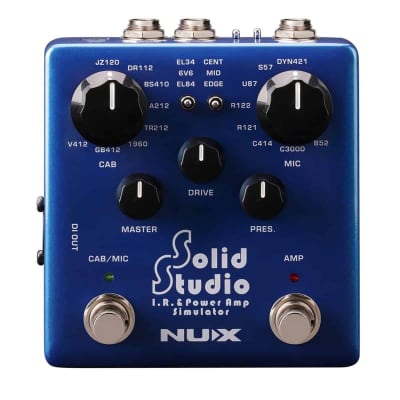

The pedal offers an intuitive interface with potentiometers and switches for direct parameter control, allowing users to activate cabinet simulation and power amplifier simulation. It supports IRs with a length of up to 2048 samples, providing an excellent rendering of impulse responses. The pedal also features a micro USB connector for configuration via provided software, enabling users to load custom IRs onto the pedal.

The power amp simulation offers three tube models (EL84, LE34, and 6V6) with corresponding tonal characteristics, providing flexibility in sound shaping. Additionally, the pedal provides various connection scenarios, allowing users to apply cabinet simulation to their signal, use it as a DI box, or connect it to an FX loop.

Overall, the NUX Solid Studio pedal is designed to deliver high-quality sound reproduction, precise IR rendering, and flexible connectivity options for guitarists and musicians in both studio and live performance settings.
